Advanced Telescopic Cover Design: The Key to Reliable Machine Protection and Maintenance Efficiency

In the world of modern precision machining, critical components such as guideways, motors, and transmission systems are constantly at risk from chips, coolant, and fine dust contamination. These threats can lead to reduced machining accuracy, increased wear, and even severe equipment failures with costly downtime. Telescopic covers serve as the first line of defense, shielding vital parts from damage while enhancing overall machine longevity.

This article explores the structural design principles of telescopic covers and introduces Tien Ding Industrial’s innovative solution tailored for large-scale machine tools. The goal: to maximize protection while minimizing maintenance complexity and cost.

---

Engineering for Functionality: Tailored Structures for Telescopic Covers

Telescopic covers must open and close in sync with machine motion while maintaining tight sealing, alignment, and operational smoothness. To meet the varied requirements of CNC equipment, the machine cover industry generally classifies designs into three primary shapes:

1. Roof Type (Approx. 60%): Offers excellent rigidity and facilitates coolant drainage, preventing liquid buildup that could damage the guideways.
2. Flat Type (Approx. 20%): Ideal for machines with limited vertical space. The simplified structure ensures easy access and straightforward maintenance.
3. Slant Type (Approx. 5–10%): Applied to special-purpose machines requiring angular protection or custom configurations.

Each form is engineered to accommodate the mechanical constraints and spatial demands of the machine tool it protects. In some cases, hybrid configurations are also adopted for machines with complex kinematic setups.

---

Core Structural Components: Sliding and Alignment Mechanisms

To ensure consistent telescoping movement and prevent cover misalignment or jamming, the following design elements are commonly integrated:

• Synchronous Mechanism: Maintains precise alignment between each sliding segment during expansion and retraction, preventing distortion and jamming.
• Sliding Pads: Reduce friction between the cover and machine surfaces, allowing for smoother motion and less wear over time.
• Roller Systems: Minimize wear on contact surfaces and ensure durability during long-term high-speed operation.

These features are especially critical for high-speed machine tools where even minor inaccuracies can result in severe performance issues or cover damage.

In environments with high exposure to abrasive chips (e.g., cast iron or ceramic machining), adding heat-resistant and wear-resistant sliding materials is key to maintaining cover functionality.

---

Tien Ding’s Innovation: A Breakthrough Telescopic Cover for Large Machine Tools

As CNC machines grow in size—such as five-axis horizontal machining centers and gantry-type machines—telescopic cover design must overcome new challenges:

• Longer travel distances with shorter retracted lengths
• Wider cover widths due to increased machine spans
• Unbalanced segment proportions leading to misalignment or mechanical interference

While most manufacturers rely on complex synchronized structures to maintain cover alignment, these systems can be cost-intensive, difficult to maintain, and overly complicated for oversized applications.

To address this, Tien Ding Industrial has pioneered a novel structural solution: increasing the overlap between cover segments to eliminate the need for a synchronized mechanism entirely.

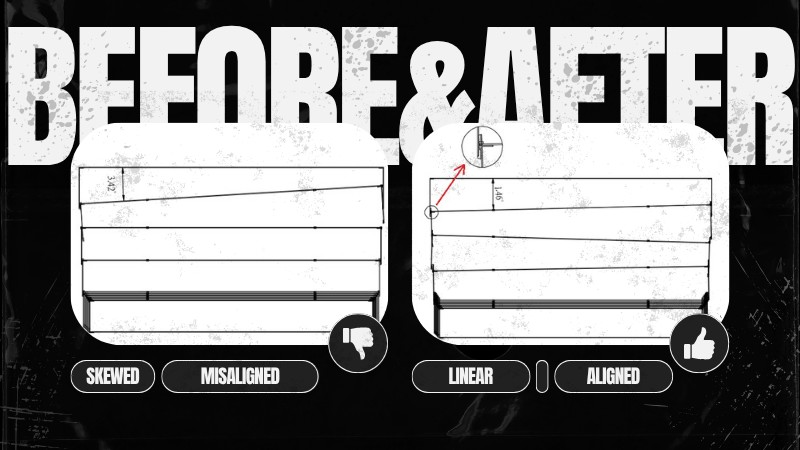

Through kinematic simulation and field analysis, we found that greater overlapping length during retraction significantly improves stability and reduces misalignment risks. This approach also offers several advantages:

• Lower manufacturing and maintenance costs
• Optimal for long-stroke, wide-span covers
• Lightweight yet rigid design for high-load environments
• Enhanced performance in dusty, oily, or vibration-prone operating conditions

---

Boosting Operational Efficiency and Maintenance Benefits

A high-quality telescopic cover effectively blocks metal chips, coolant, and fine particles from entering the machine’s core systems. Tien Ding’s advanced high-overlap design not only improves movement accuracy but also simplifies maintenance and enhances durability.

Additional performance benefits include:

• Minimized unplanned downtime
• Extended life span of both the cover and machine components
• Higher machine availability and production line efficiency
• Faster cover replacement cycles due to simplified structure
• Better compatibility with automatic lubrication and chip-removal systems

Maintenance Tip:
Regular inspection of the sliding system and sealing strips is crucial. Integrating visual wear indicators or access ports can further reduce maintenance complexity.

---

Frequently Asked Questions (FAQ)

Q1: How often should telescopic covers be inspected?
A: We recommend visual inspections every days, depending on the machine’s operating environment. High-speed or heavy-chip applications may require more frequent checks.

Q2: Can telescopic covers be retrofitted to older machines?
A: Yes. Tien Ding offers custom-fit retrofit solutions tailored to the machine's travel, installation constraints, and operation needs.We may need to take measurements or review drawings to ensure a proper fit.

Q3: What types of environments benefit most from stainless steel covers?
A: Stainless steel covers are ideal for applications with high coolant exposure, chemical processes, or humid operating conditions where corrosion resistance is essential.

Q4: What is the typical service life of a telescopic cover?
A: With proper maintenance, high-quality covers can last 5–10 years or longer, depending on load conditions, materials, and operating speed.

---

Conclusion: Practical Innovation for Long-Lasting Machine Protection

In high-performance machining environments that prioritize efficiency, accuracy, and uptime, the design of telescopic covers plays a critical role. With decades of hands-on experience, Tien Ding Industrial has developed a reliable solution to the challenges faced by large-scale telescopic covers—simplifying their operation, reducing complexity, and enhancing performance.

Our engineering team continues to refine material usage, simulate motion dynamics, and optimize fabrication to meet the evolving needs of industrial manufacturers around the world. Whether you're building a new machine or upgrading an existing one, the right telescopic cover is more than just a shield—it’s an investment in uptime, quality, and peace of mind.

---
